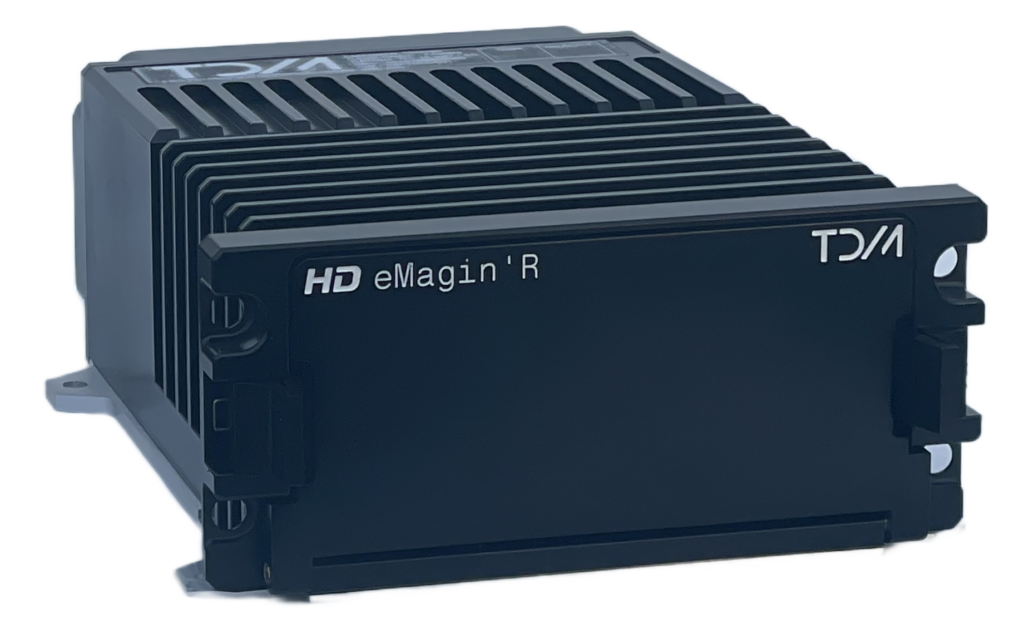

EMaginR

Solution de compression vidéo H264 haute qualité de 4 vidéo en très faible latence (<60ms) – l’EMaginR

Weight: 1.9 kg | Dimension : 66.3mm x 181mm x 145mm | Operating temperature : -40°C to +55°C | Power supply: 18V to 36V | Input transient : 80V/100ms | Energie Loss : 50ms | Consumption : 25W

Attributs de l’EMaginR :

• High quality H264 video compression solution for 4 videos in very low latency (<60ms)

• Simultaneous acquisition of 4 video inputs chosen from 12 possible: 4 SMPTE HD/SD SDI, 4 NTSC/PAL and 4 RGB/YUV.

• Acquisition of a stereo analog audio input and/or the audio stream embedded in the SDI video.

• Acquisition and encapsulation of metadata and GNSS data.

• High quality and low quality compression (with or without cropping and/or resizing) for each video channel.

• Recording capacity of 24 hours for 4 videos or 96 hours for 1 video.

• Possibility of simultaneous viewing of the 4 video channels by several users.

• Equipment already on-board of combat aircraft
